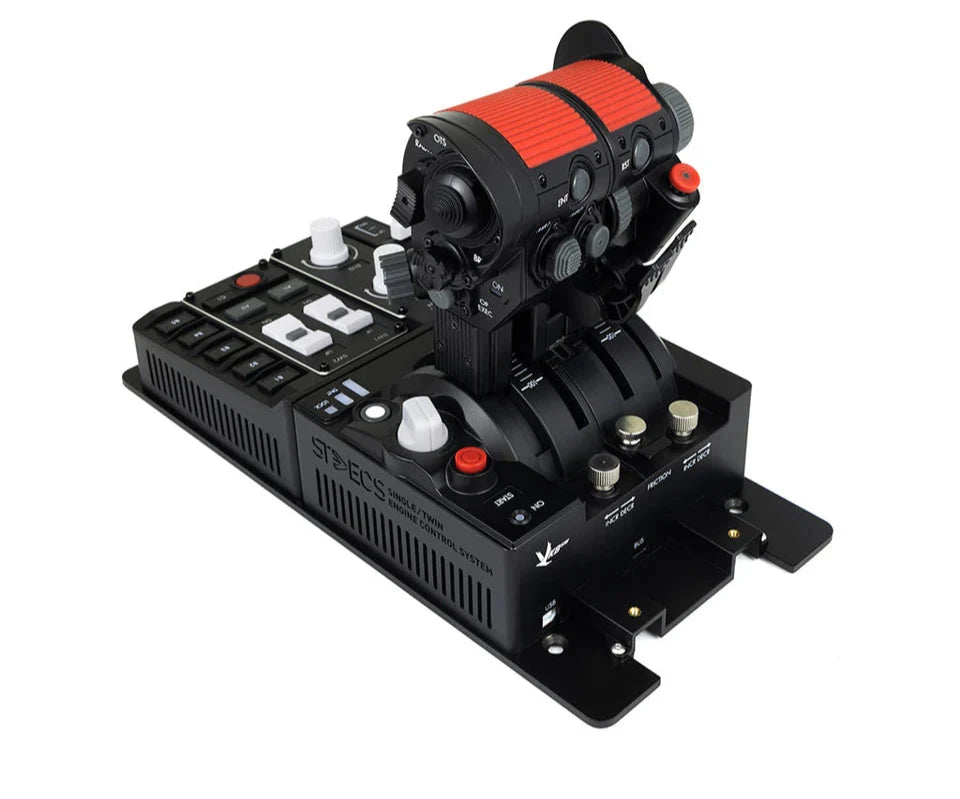

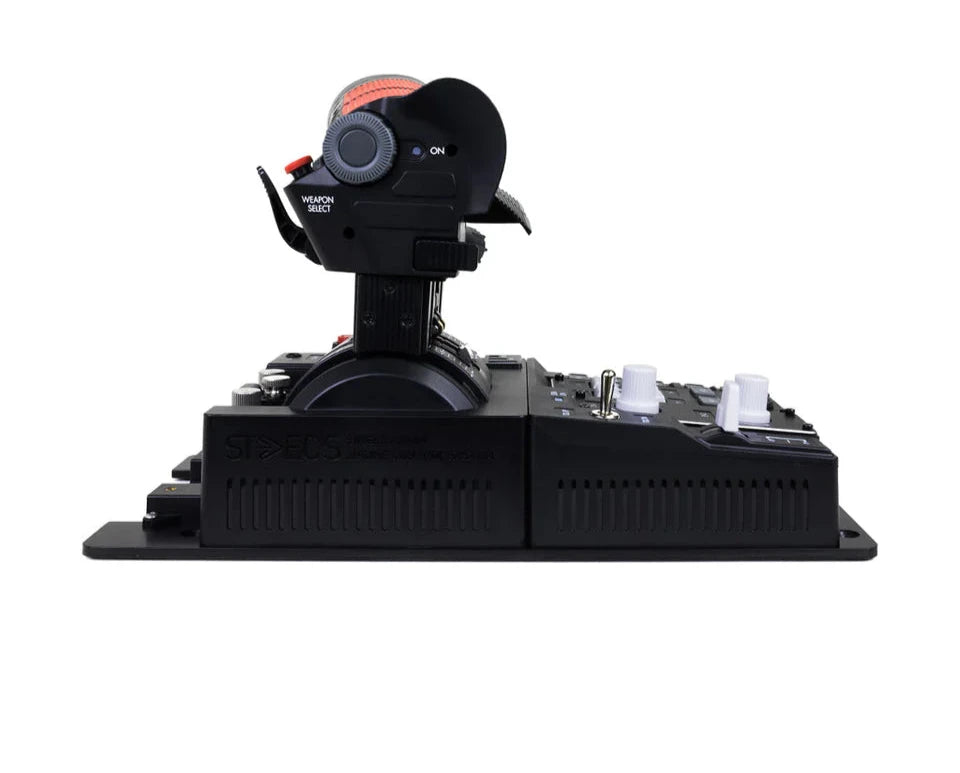

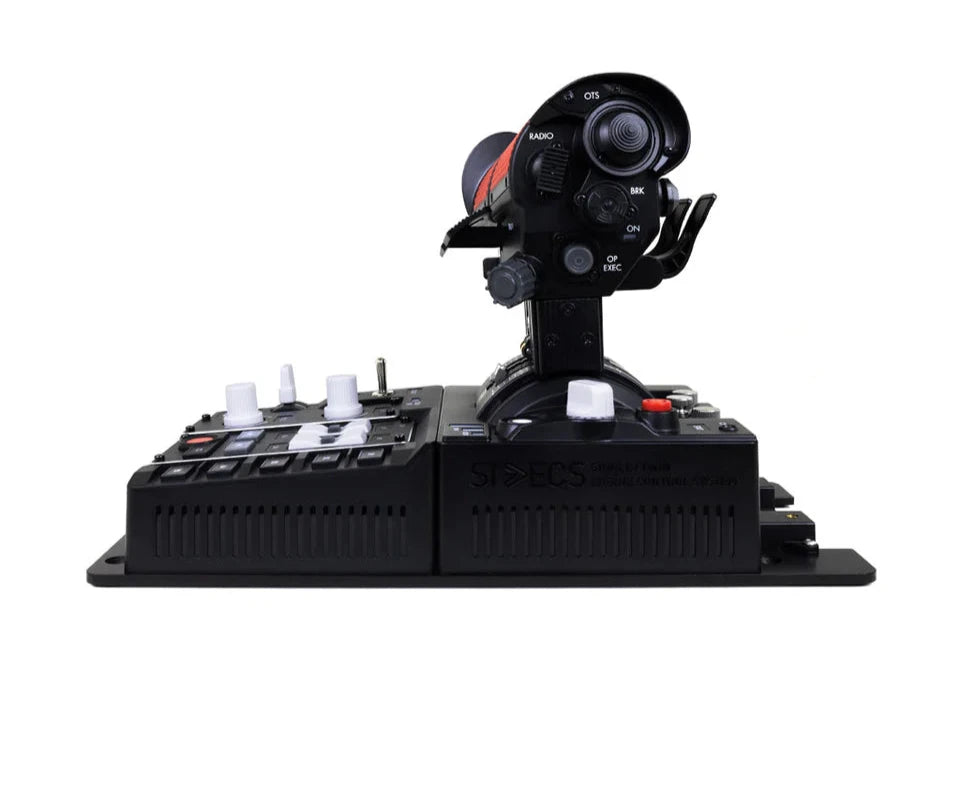

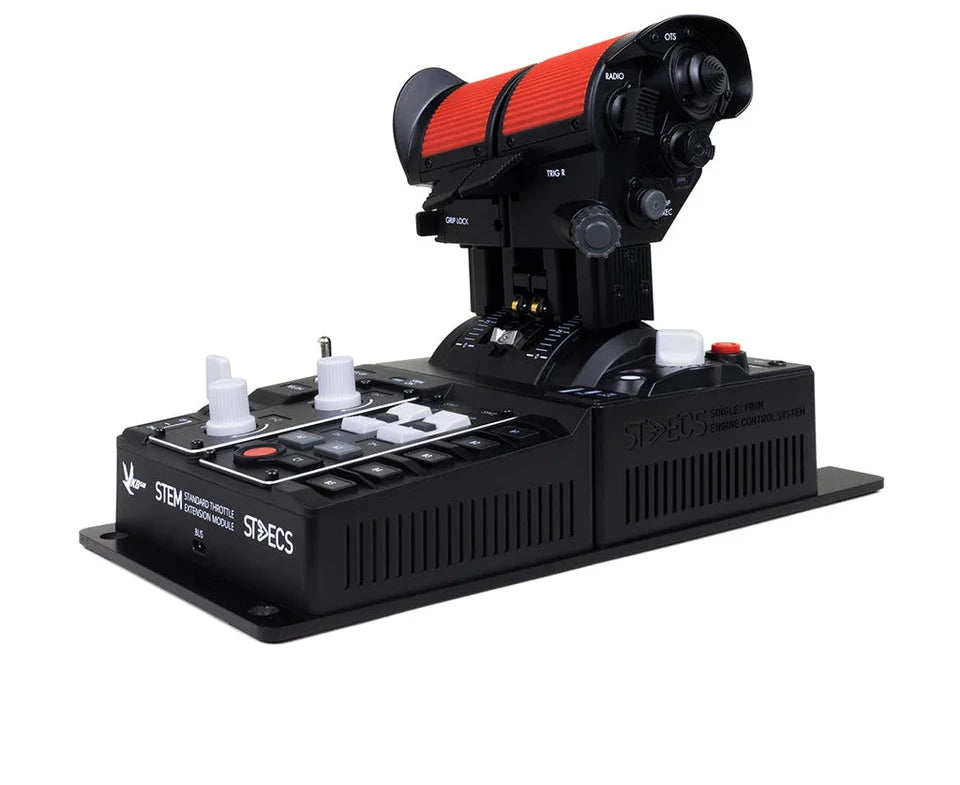

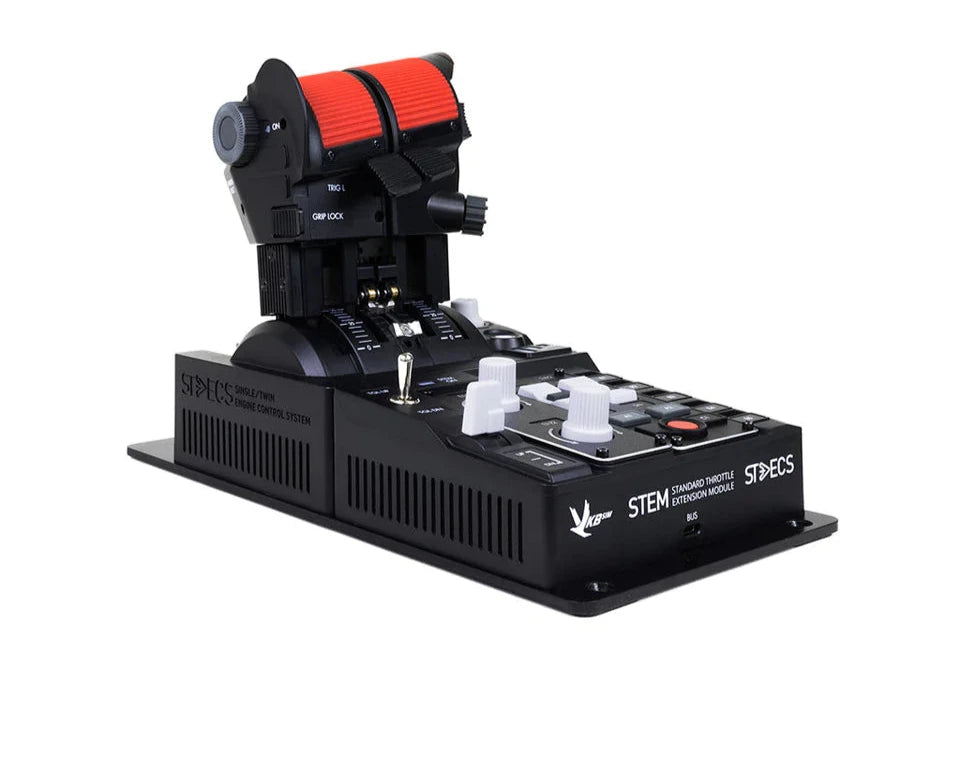

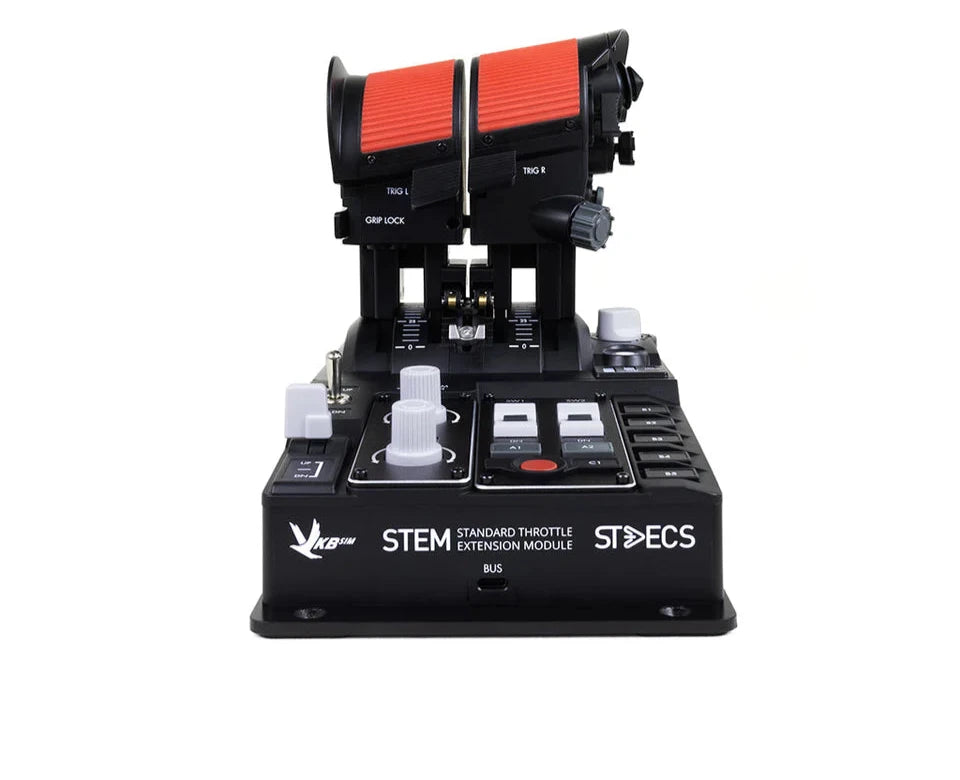

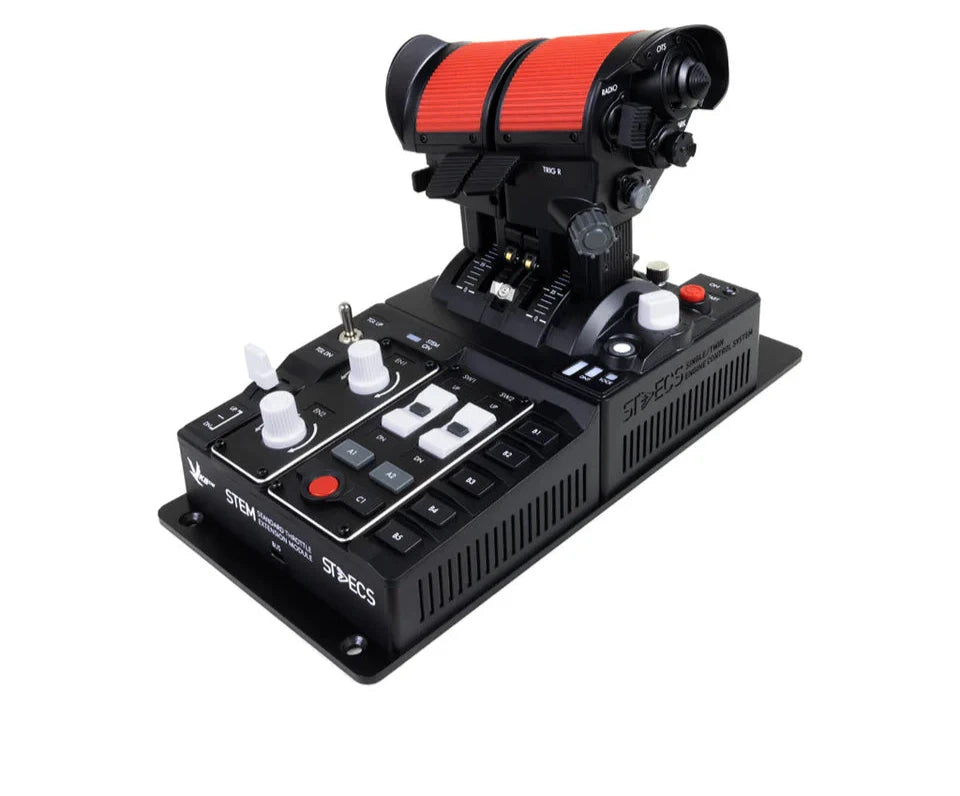

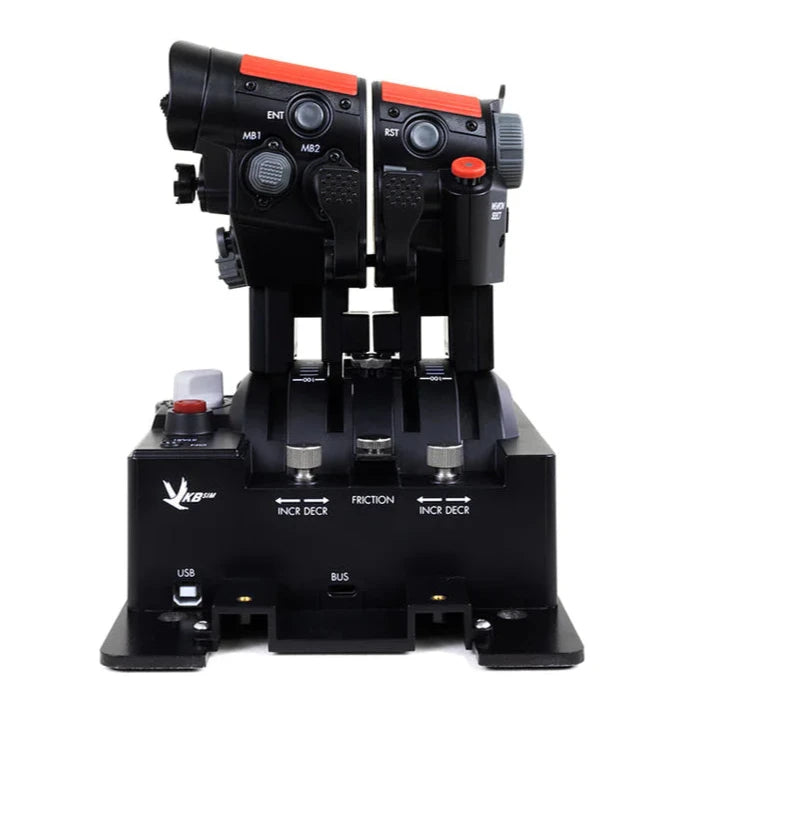

STECS Throttle System - Standard

STECS Throttle System - Standard

Based on a solid steel platform, the STECS Standard can be used as a desktop stand-alone device, or mounted to a sim rig. Includes MFH (MultiFunctional Holder) compatible fixture to connect frontal extension modules.

Does not include GNX MFH

For the perfect and most ergonomical desk mounting option, please see the UCM-S STECS Standard

Includes

• 1 STECS base
• 1 MTG-L grip

• 1 MTG-R grip
• Red rubber grip pads (pre-installed)
• Green and gray rubber pads included

• 5 Detent Frames

• 4 L-shape detent - regular

• 4 L-shape detent - large

• 5 V-shape detent - regular

• 5 V-shape detent - large

• 2 W-shape

• 1 STEM module
• 1 STECS Accessory Magazine
• 1 Phillips head screwdriver
• 1 Hex screwdriver
• 1 USB cable (180 cm / 6')

STECS Throttle Grips

MTG-L (Modern Throttle Grip Left)

• 2 Buttons

• 2 Triggers

• 2 Wheel encoders

MTG-R (Modern Throttle Grip Right)

• 2 Triggers
• 1 Analog Ministick

• 1 Analog Wheel Axis
• Pre-configured Button Modules:
• 2x Buttons, 1x 3-pos Hat, 2x 5-pos Hats
• Additional Button Modules included:
  • 3x Buttons, 3x 5-pos Hats, 3x replaceable Hat caps

STEM Module

• 8 Buttons
• 2 K-switches with central push button
• 2 Encoder with central push button
• 1 Self-centering 3-position flip switch
• 1 3-position flip switch

STECS Base

• 2 Analog Axes

• 4 Ball bearings on main axes
• 2 Buttons
• 1 5-position rotary switch


General Specifications

• Grips and base made from industrial-grade ABS
• Base supported with glass-fiber-reinforced PA for load-bearing structures

• Tabletop baseplate made from steel
• 32-bit ARM Controllers inside the base and grip
• ALPS buttons (Japan OEM) for extended longevity
• Contactless MaRS sensors with High Resolution
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles
