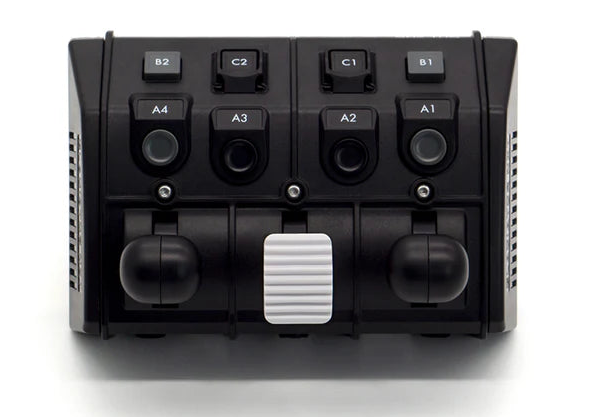

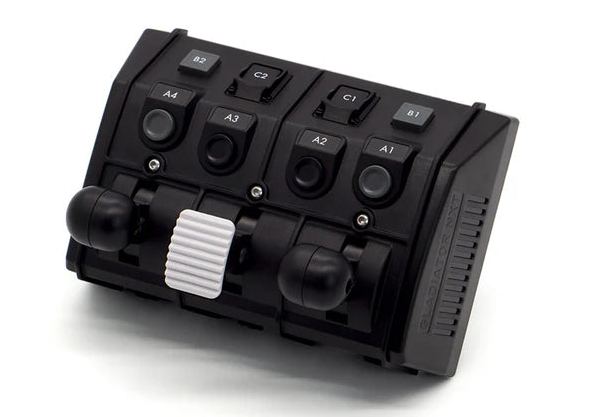

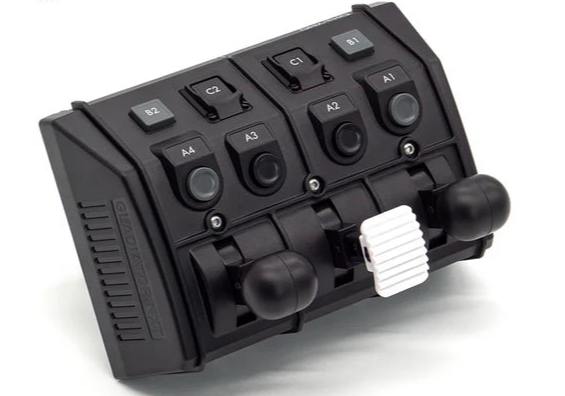

GNX THQ-V (Throttle Quadrant - Vertical)

GNX THQ-V (Throttle Quadrant - Vertical)

A USB connection is not included by default because GNX modules are specifically designed to be connected to Gladiator NXT/EVO joysticks, allowing them to function together as a single integrated device through their internal BUS interface.

If you want to use a GNX module on its own, directly connected to your PC, you'll need to separately purchase and install a GNX USB Controller HID-Main to replace the module's default GNX BUS Interface.

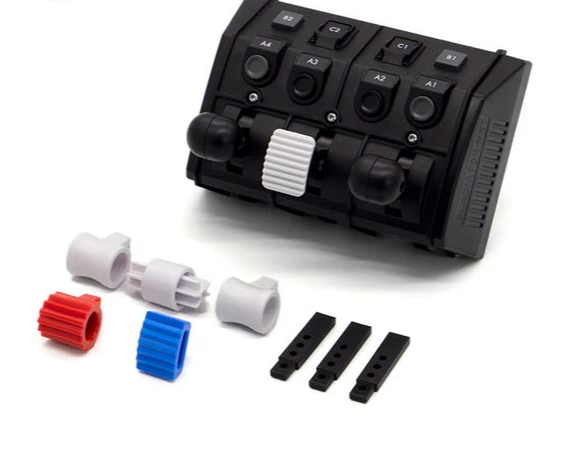

Includes

• THQ-V Module
• Plastic Coupler
• Type-C Connector Guard
• Rubber Pads
• Plastic Spacers
• Interchangeable Heads
• Metal Levers (Long)
• Plastic Levers (Short)
• Internal "Module-to-Module" Cable
• Internal "Module-to-Joystick" Cable
• Phillips Screwdriver
• HEX Screwdriver
• Stickers with Protective Film
• BUS (Type-C) to (Type-C) Interface Cable

Vertical module

• A vertical GNX module can be connected next to another THQ or SEM vertical module on the same GNX Multi-Functional Holder (MFH).
• Keep in mind that you cannot connect vertical GNX modules directly to a Gladiator NXT/EVO joystick. Instead, connect them to a GNX tabletop module (THQ or SEM) that is attached to a Gladiator NXT/EVO joystick.

Recommendations

• Consider a GNX MFH to attach the module.
• If you want to use a GNX module on its own, directly connected to your PC, you'll need to separately purchase and install a GNX USB Controller HID-Main to replace the module's default GNX BUS Interface.

Features

Utilizes the newly developed VKB Njoy 32NG firmware, allowing recognition of up to 20 analog axes in Windows, divided into 3 devices.

• 3 Analog Axes (with clutch dampers and adjustable length/height of axis levers)
• 8 Push Buttons
• 5 Interchangeable Axis Lever Heads (different colors/shapes)
• Connect up to 4 GNX THQ modules, providing a total of 12 analog axes
