Gladiator EVO 'Space Combat Edition' Standard

Gladiator EVO 'Space Combat Edition' Standard

The Gladiator EVO Standard is the basis of a modular VKB flight control system.

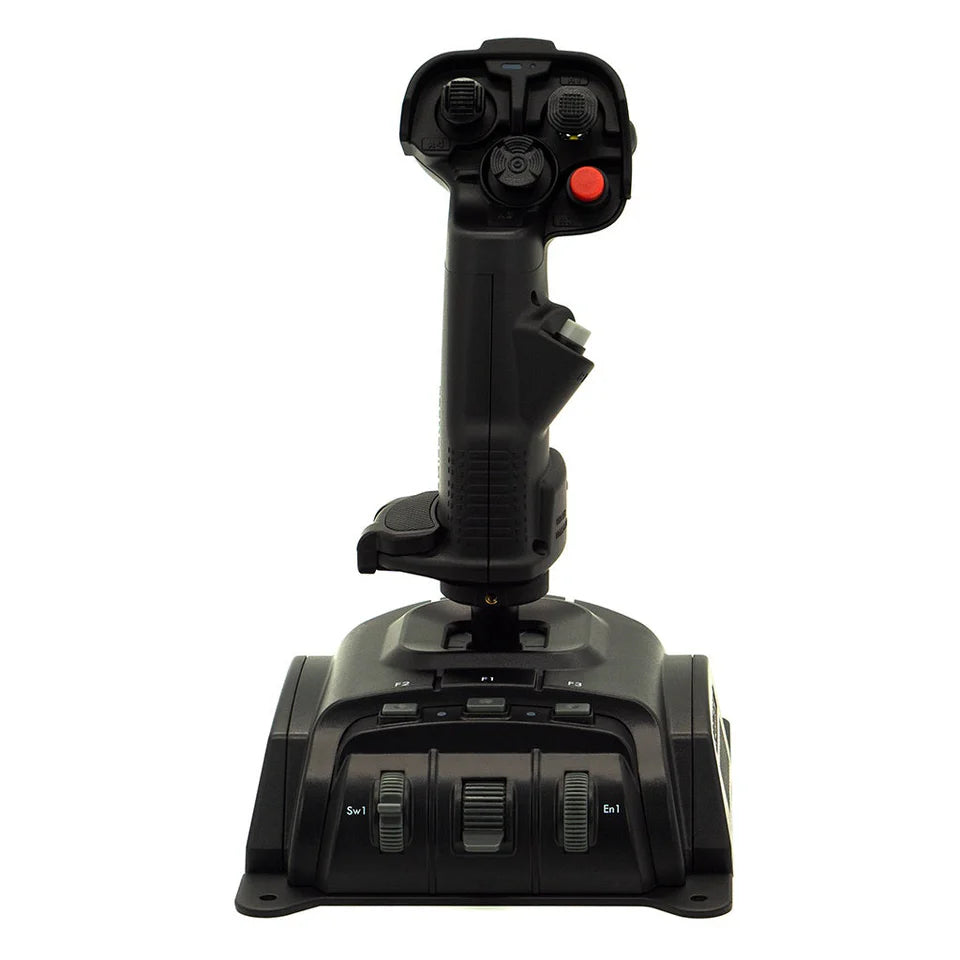

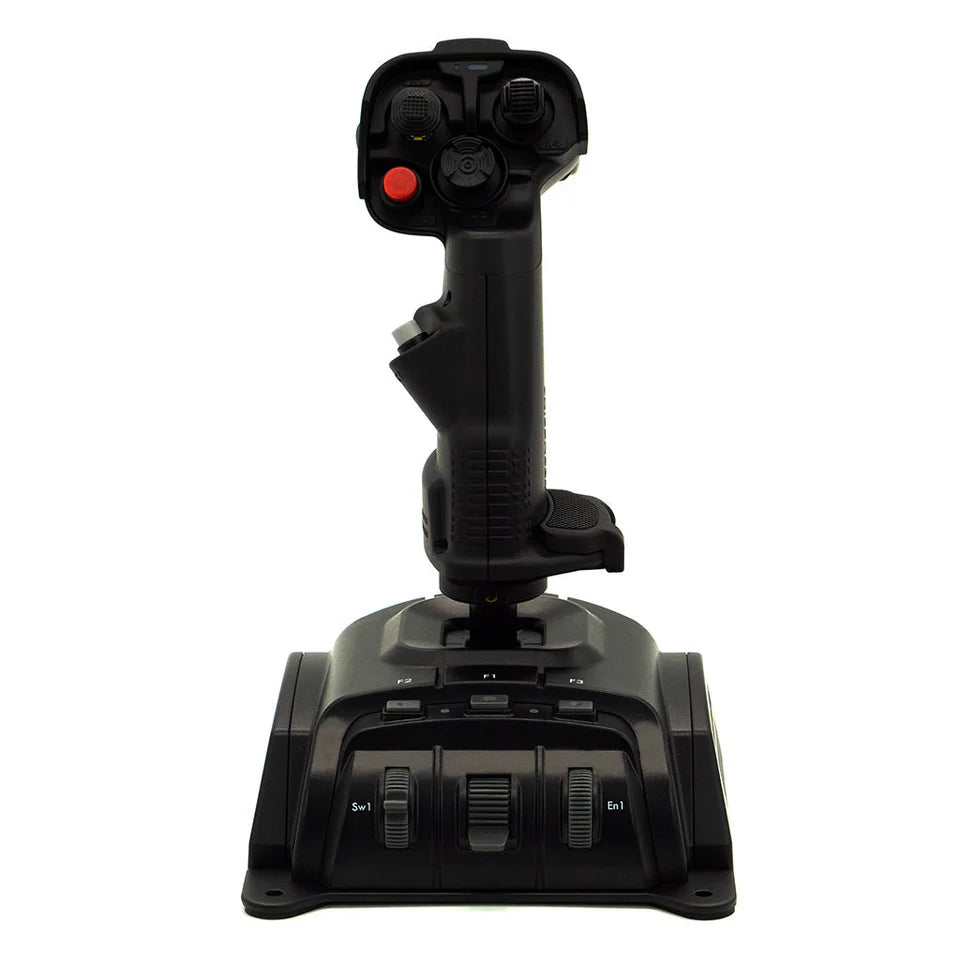

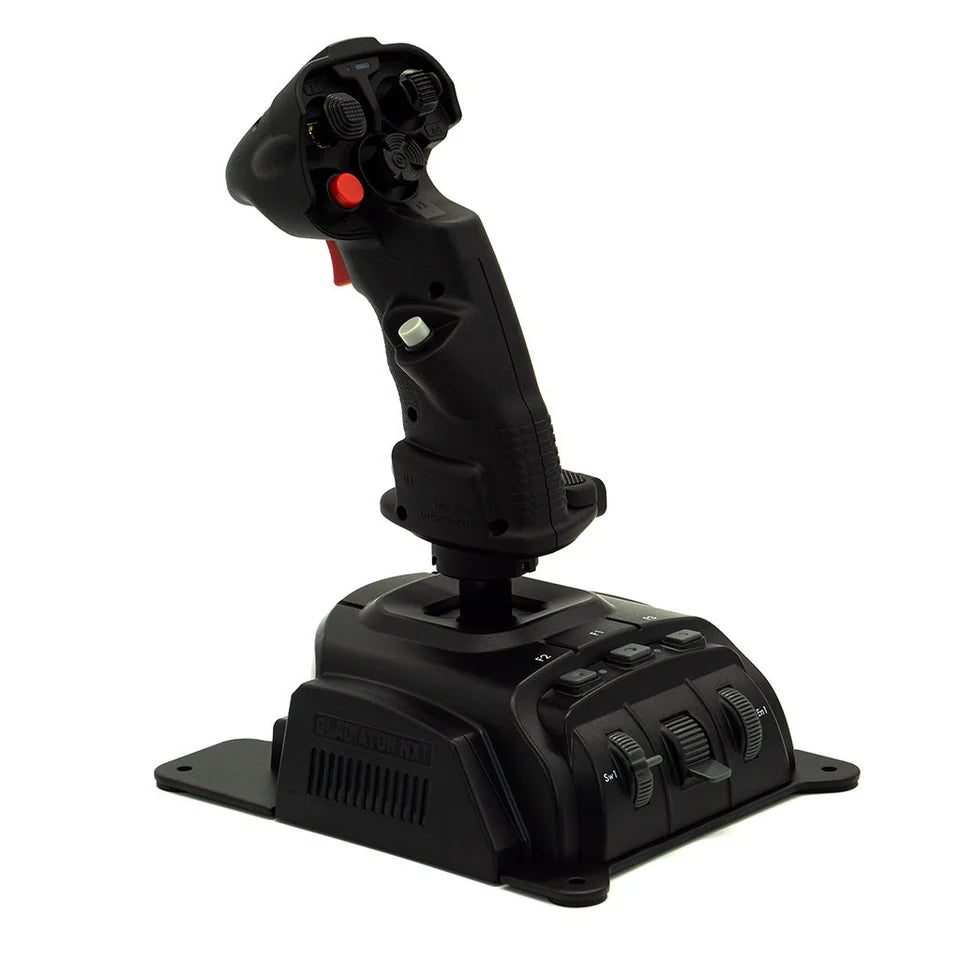

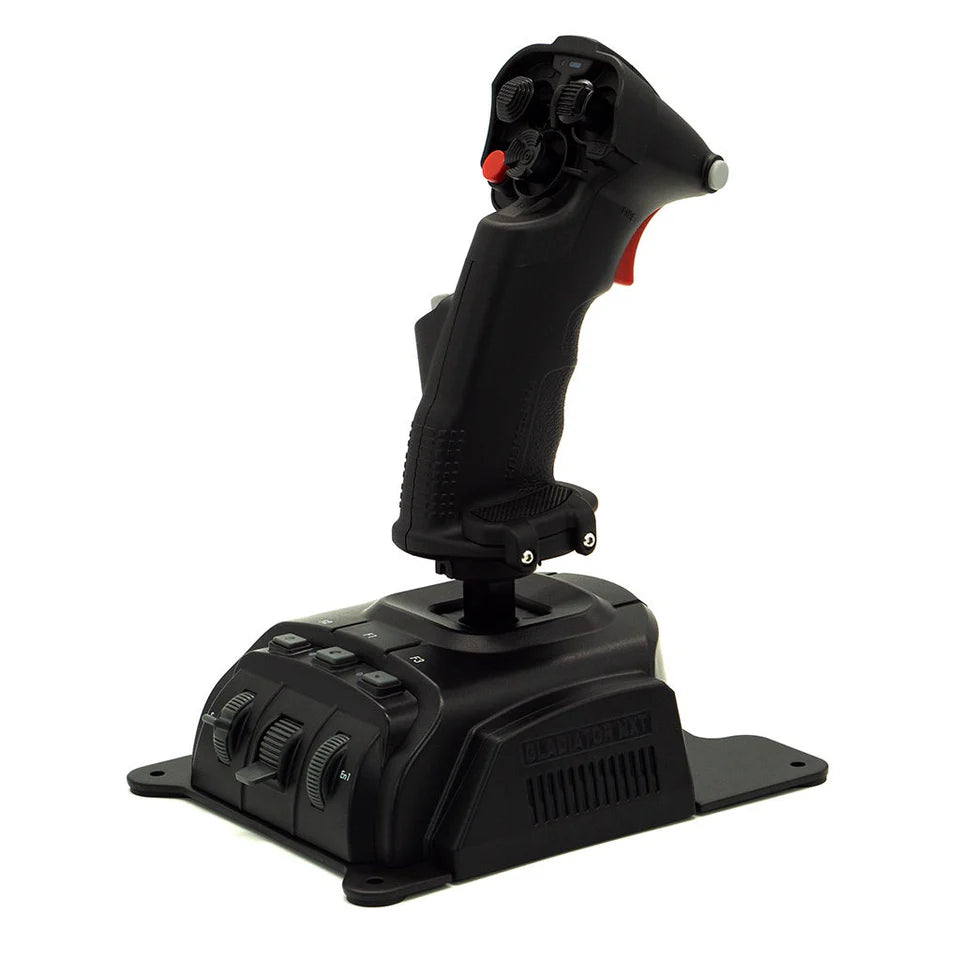

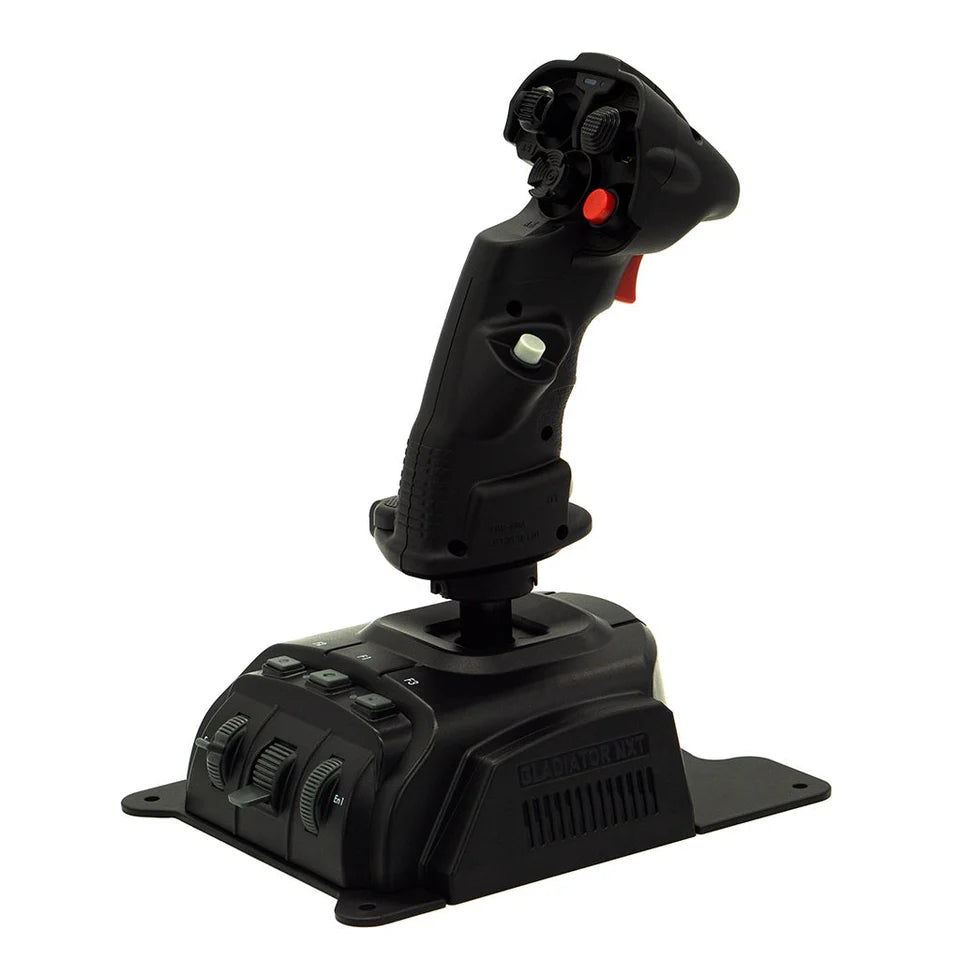

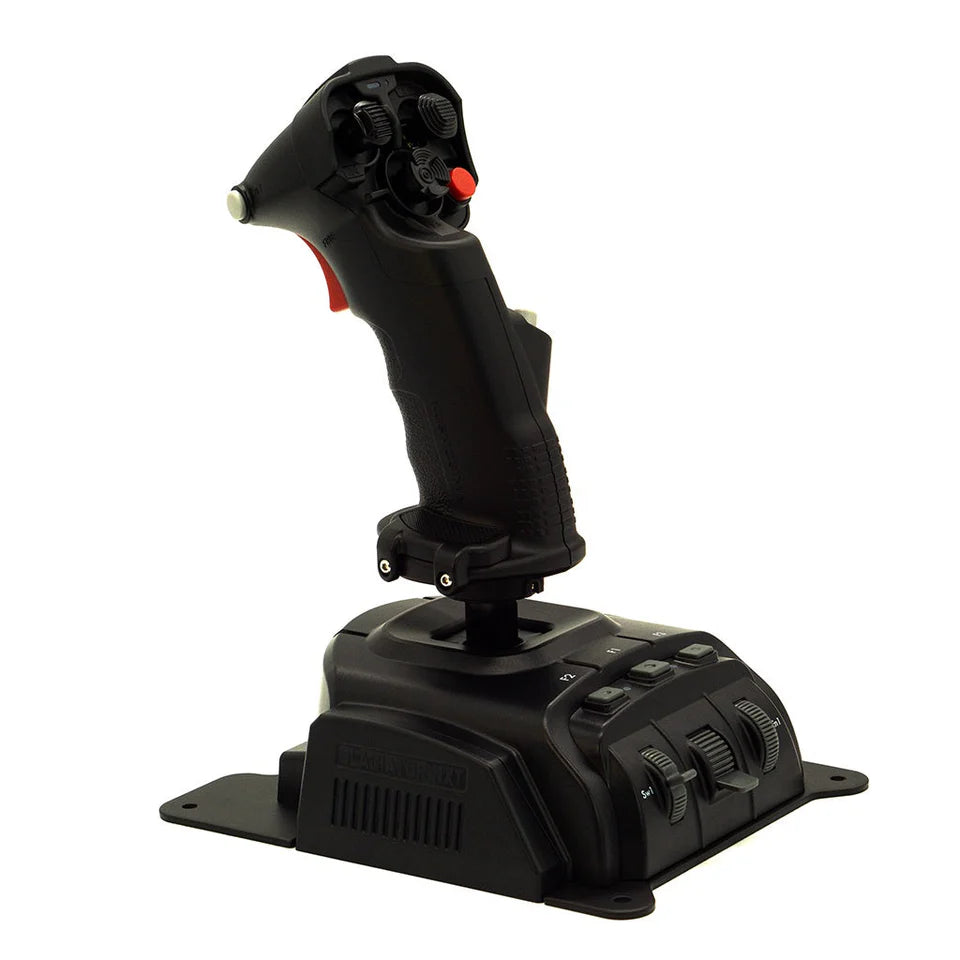

 * EVO with Premium grip depicted here

Content

• 1 GNX SCG Standard Grip (Left or Right)
• 1 GNX EVO Base

GNX SCG Standard Grip

• Compact grip design – Perfect for tabletop joysticks
• Lockable Twist (Z-axis) with contactless MaRS sensor
• 1 Dual Action Trigger
• 3 Hat switches with centre push (4-way)
• 4 Buttons
• Programmable red colour LED
• Programmable RGB LED
• 2 interchangeable palm rests (total 3 palm-size adjustments)

GNX EVO Base

• 2 Contactless MaRS sensors on X and Y axes
• 1 Auto-centreing 3-position switch
• 1 Throttle wheel
• 1 Rotary encoder
• 3 buttons
• Gimbal with ball bearings
• Adjustable dry clutches for user-tunable load
• 2 Programmable single-color LEDs
• Tabletop base steel plate
• Operating manual
• Set of soft springs
• Set of strong springs
• Spring extractor tool
• Set of screws
• Screwdriver
• USB cable (180cm/70inch)
• Cable holder tool

General Specifications

• Base & Grip made from industrial grade ABS
• Gimbal made from glass-fiber-reinforced PA
• Tabletop base plate made from steel
• 32-bit ARM Controllers inside base and grip
• ALPS buttons (Japan OEM) for extended longevity
• Contactless MaRS sensors with High Resolution
• Plug & Play with Driver-Free Installation (Recommended for Most Users)
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles
• Optional Programming Software Available (For Advanced Users)

Warranty

• 1 Year

Compatible with

• STECS Throttles
• GNX Extension modules
• T-Rudder Mk.V
• Universal Controller Mount UCM-S GL
