Gladiator EVO 'F-14 Combat Edition

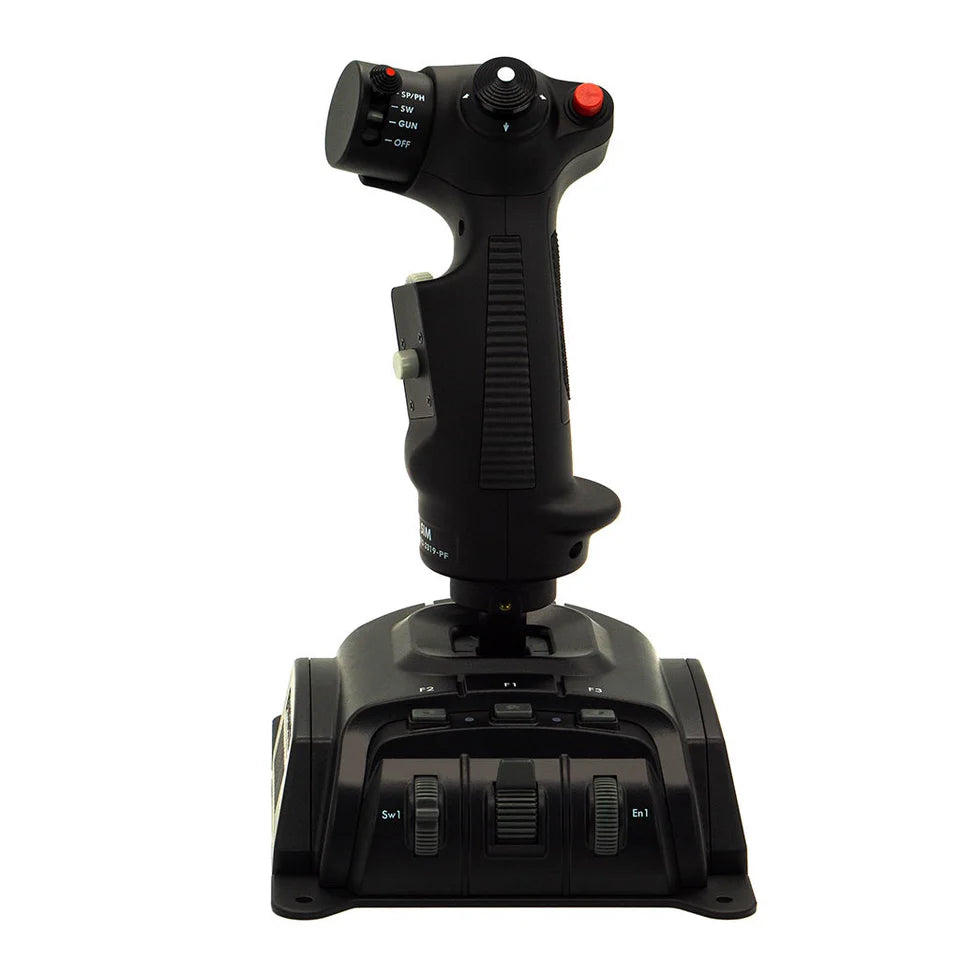

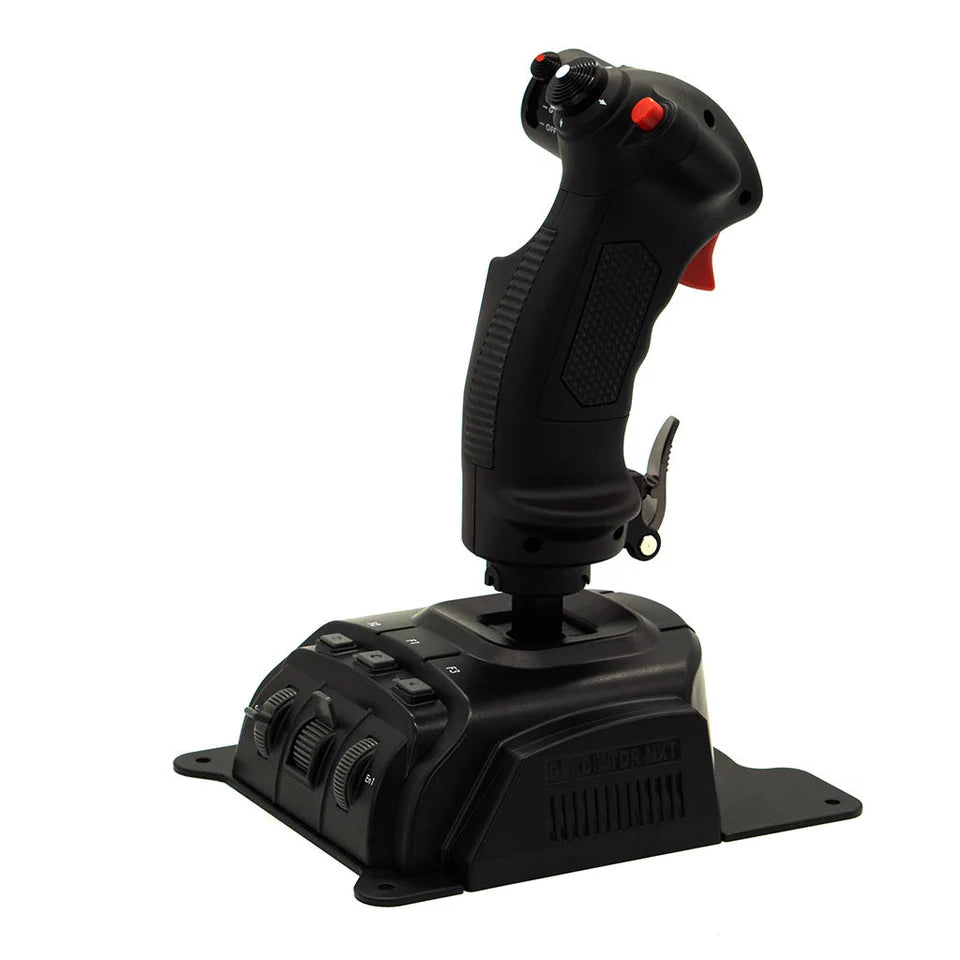

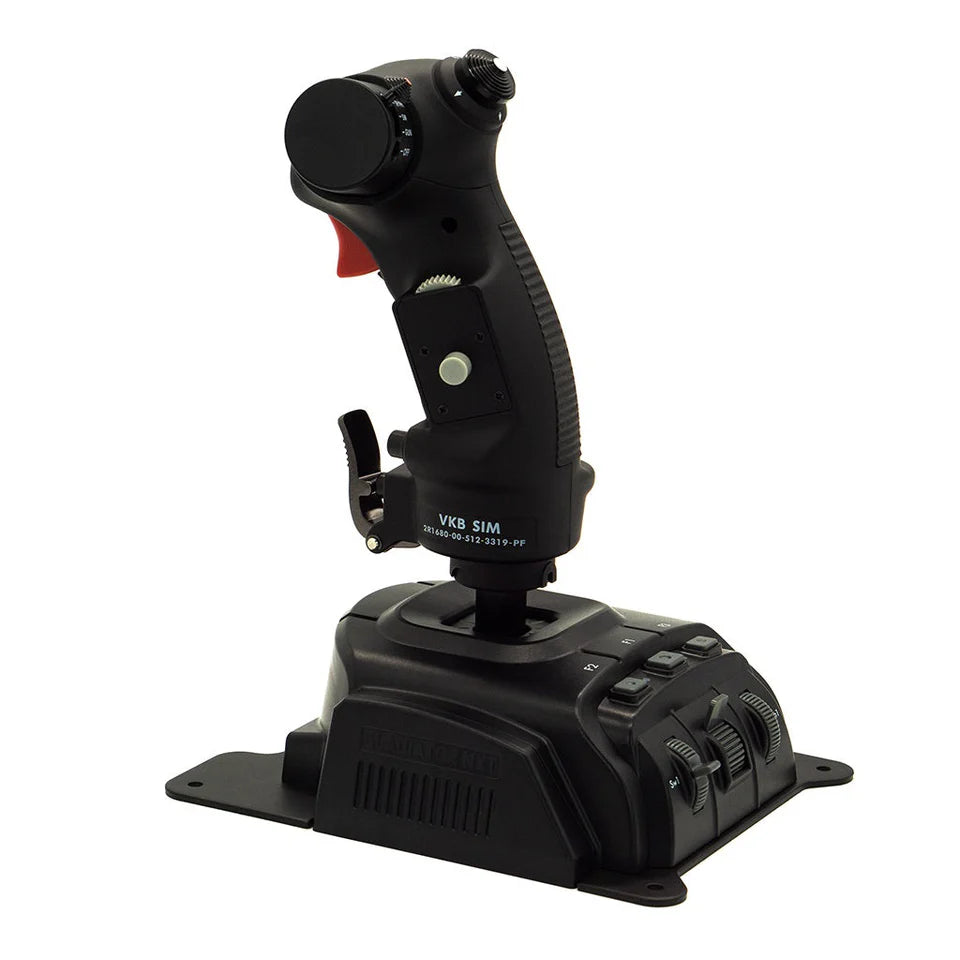

Gladiator EVO 'F-14 Combat Edition'

The Gladiator EVO 'F-14 Combat Edition' is the ideal controller for any avid combat pilots and forms the basis of a modular VKB flight control system.

For a detailed product description and to find out what's new about the EVO compared to the superseded NXT controllers

Content

• 1 GNX F-14 grip
• 1 GNX EVO Base

GNX F-14 Grip

• F-14 replica grip
• Built-in, lockable twist adapter
• Rubber inserts for a no slip firm and handy grip
• Metal ammo switch, hat, and emergency-autopilot-disable-trigger
• Long travel, soft-click buttons
• Modular hat design (fully dismantlable, all buttons user replaceable)
• Ammo switch design based on contactless sensor
• Spring-loaded, self-centreing DLC (Direct Lift Control) manoeuvre wheel design based on contactless sensor
• Two-step trigger design based on cam mechanism – similar to that used in real life war planes
• 32-bit ARM controller as the brain of the grip
• Made from industrial-grade ABS

Available Grip Axes / Buttons

• 1 Rudder axis (lockable)
• 1 DLC (Direct Lift Control) axis
• 1 Hat Switch with push
• 1 Dual-stage trigger
• 1 Four-stage ammo selector with safety lock and push
• 4 Programmable buttons

GNX EVO Base

• 2 Contactless MaRS sensors on X and Y axes
• 1 Auto-centreing 3-position switch
• 1 Throttle wheel
• 1 Rotary encoder
• 3 buttons
• Gimbal with ball bearings
• Adjustable dry clutches for user-tunable load
• 2 Programmable single-colour LEDs
• Tabletop base steel plate
• Operating manual
• Set of soft springs
• Set of strong springs
• Spring extractor tool
• Set of screws
• Screwdriver
• USB cable (180cm/70inch)
• Cable holder tool

General Specifications

• Base & Grip made from industrial grade ABS
• Gimbal made from glass-fiber-reinforced PA
• Tabletop base plate made from steel
• 32-bit ARM Controllers inside base and grip
• ALPS buttons (Japan OEM) for extended longevity
• Contactless MaRS sensors with High Resolution
• Plug & Play with Driver-Free Installation (Recommended for Most Users)
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles
• Optional Programming Software Available (For Advanced Users)
